- Size: 0.01
- Place of Origin: CHINA
- Brand Name: beiside
- Model Number: OA500
- Weight: 9.000 kg

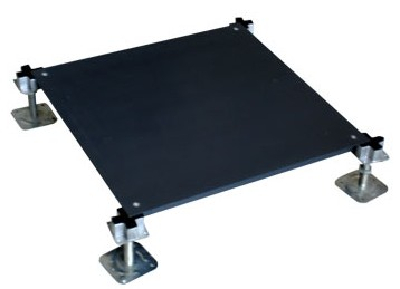

Network Raised Floor(Bare Panel)
Dimension: 500 × 500 × 28(mm)
Products Shape / Variations
Panel Type | OA500S | OA500C |
Product shape | | |
TYPE | Concentrated Load | Impact Load | Ultimated Load | Uniform Load | Rolling Load | |||
LB | N | KG | N | N | N/ ㎡ | 10passes | 10000passes | |
OA500S-Q | ≥800 | 3550 | 363 | 670 | ≥9400 | ≥14680 | 3560 | 2670 |
OA500S-B | ≥1000 | 4450 | 453 | 670 | ≥11970 | ≥16900 | 4450 | 3560 |
A four-square independently supports the structure. The upper board is made
from extra-hard steel board, and the lower board has been pulled deeply. The
flooring surface is processed with anti-static coating, and the inside is filled
with foamed cement. Zinc plating is used for the base support, and the height can
be adjusted and locks automatically. The rounds of the floor have cut-line and rivet
joints to make the shape.
OA Steel Panel is composed of whole-steel flooring, whole-steel support,
anti-static carpeting and other finishes. This high-intensity flooring has a high
load capacity and is fire, moisture, and static-proof.
Features:
1) Long use life, compact size, easy to change and maintain, flexible, reusable
2) Easy to install
3) Whole-steel construction, impact-resistant, scuff-resistant, corrosion-proof
4) High regulating range of 35 ~ 150mm
5) Comfortable to walk on, appealing to look at
6) Abundant space for wiring
7) Suitable for top-grade office buildings, computer labs, classrooms,
network rooms, and other areas that require comprehensive wiring
Pedestal
- Size: 0.01
- Place of Origin: CHINA
- Brand Name: beiside
- Model Number: OA500
- Weight: 9.000 kg
